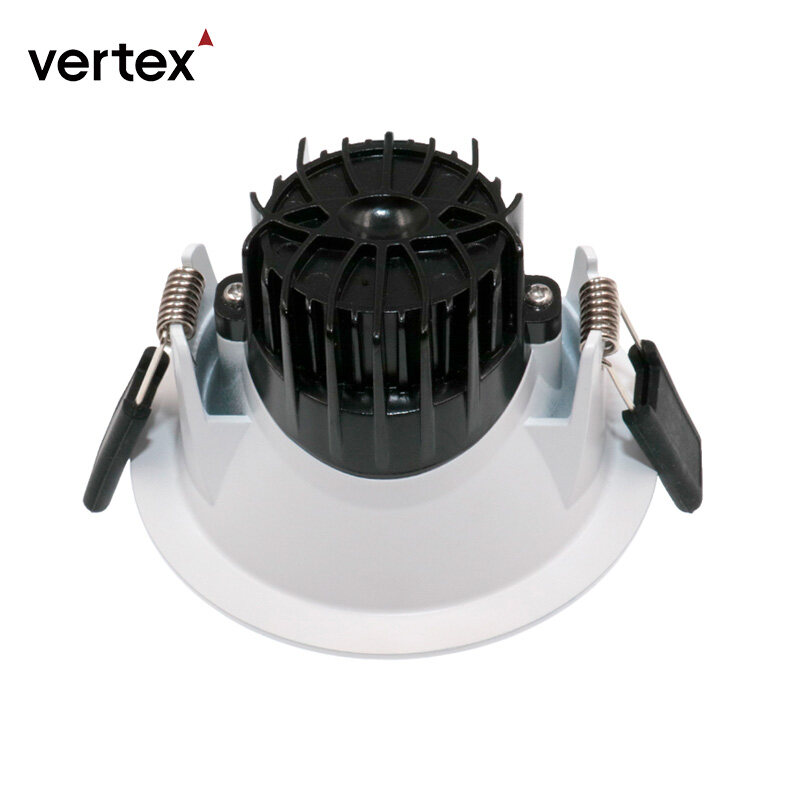

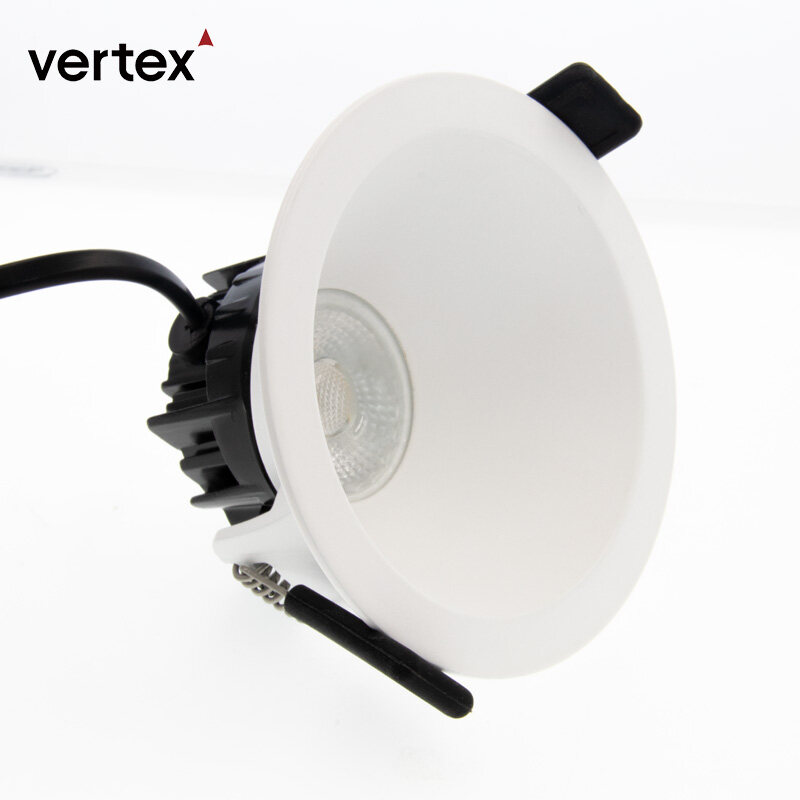

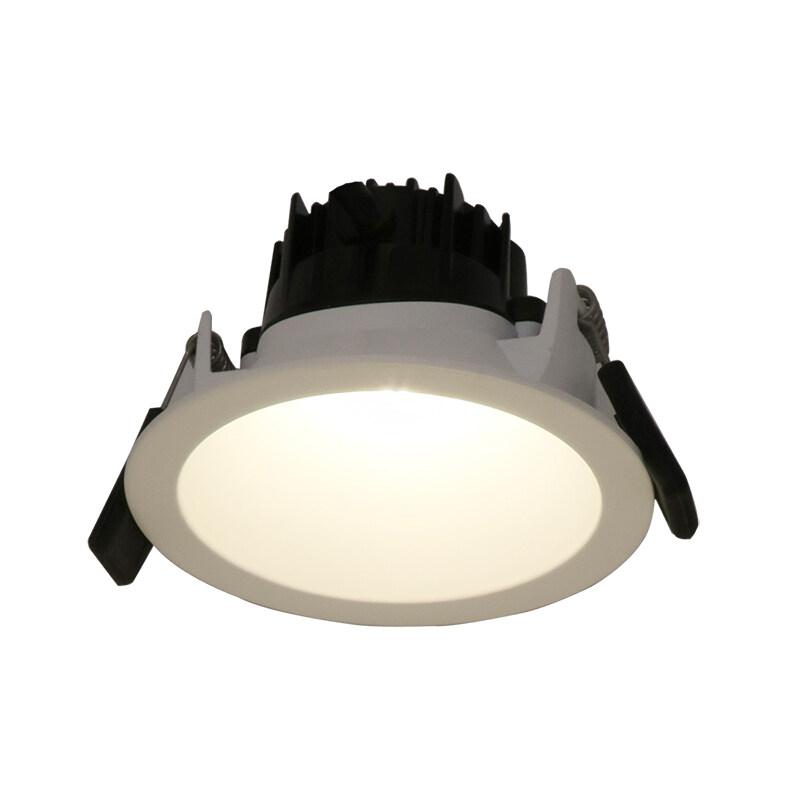

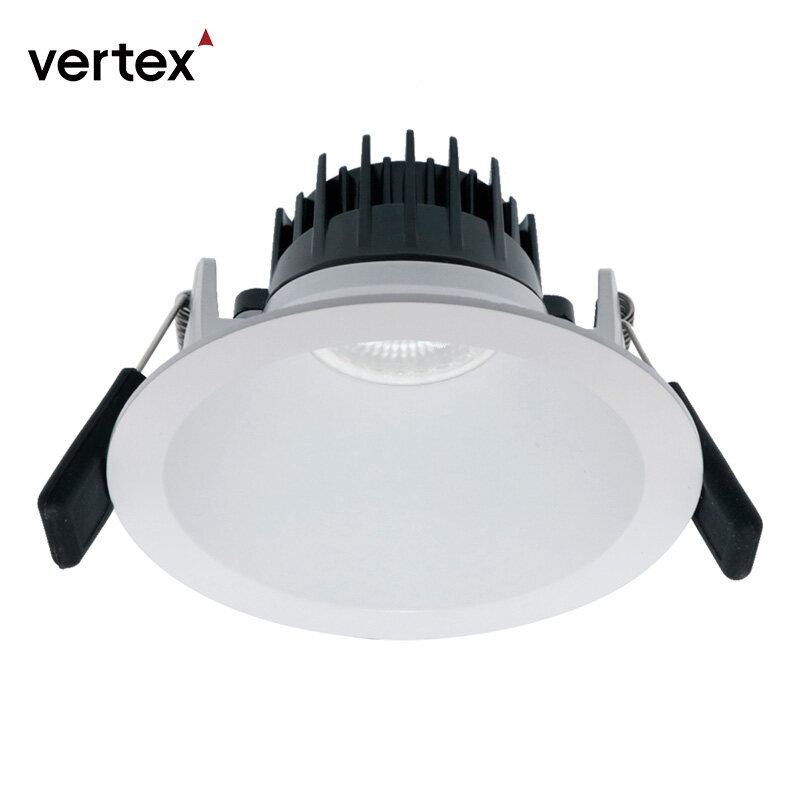

Anti-glare Downlight

AU60106-AC

Flicker free

No noise

0~100% smooth dimming

5 year warranty

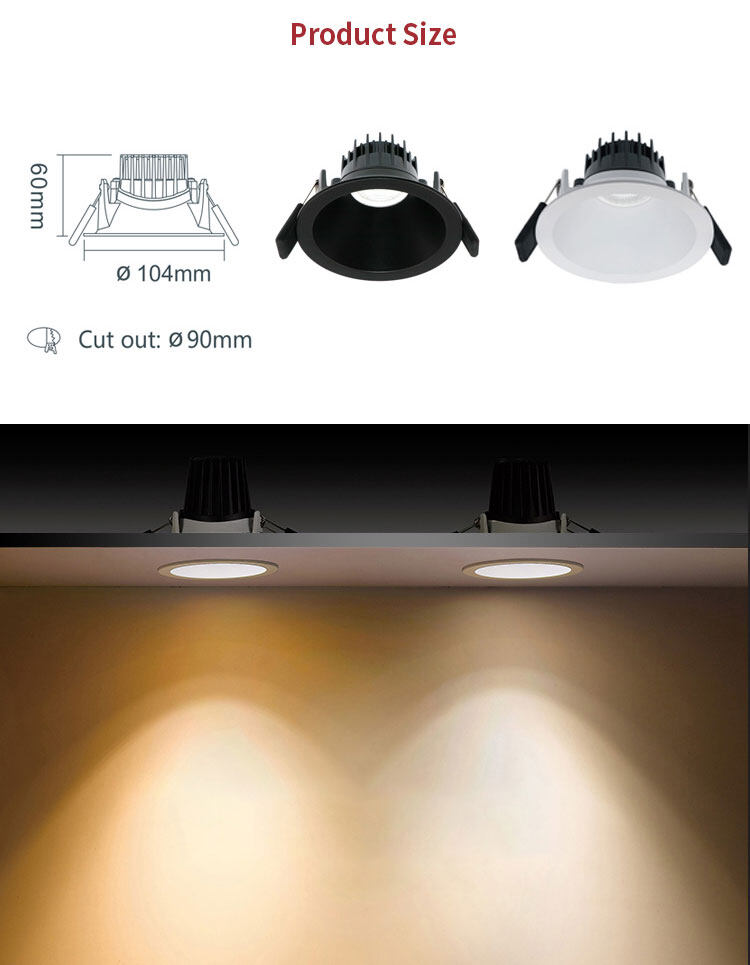

Cut out:φ90mm

Anti-Glare

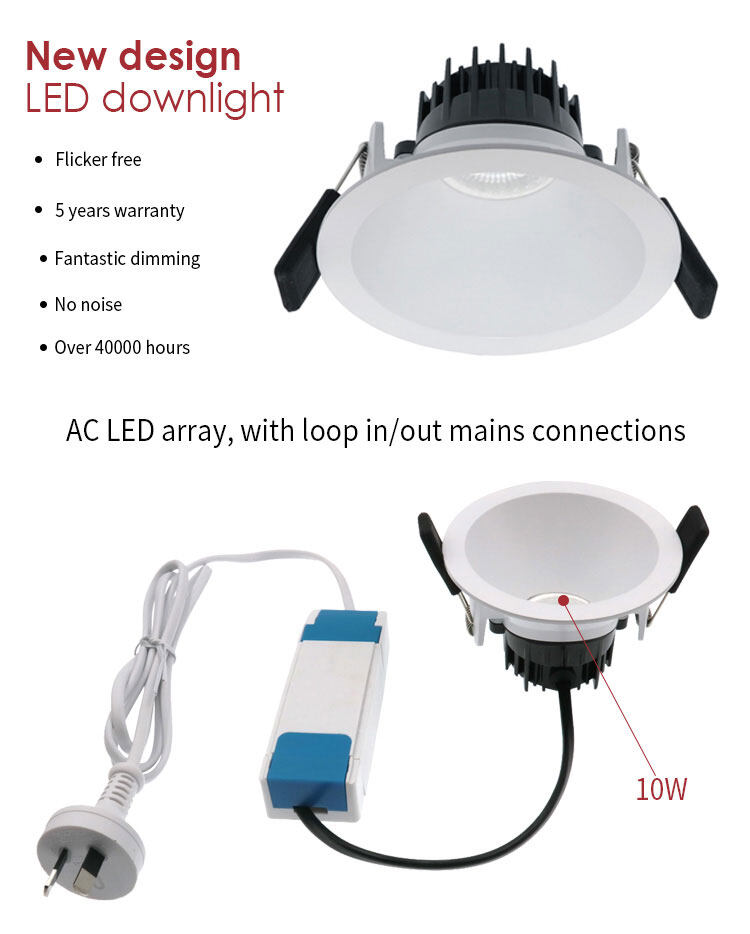

● AC LED array, with loop in/out mains connections
● Shallow downlight 60mm depth
● Dimmimg: Fantastic dimming performance, supporting 0-100% dim.
● Flicker Free: Protecting the eyesight of your family,making your life healthier.
● No Noise: Creating a quiet and comfortable enviroment for your family
● Life Span: Over 40000 hours life span or five years warranty.

Description:

Recessed IP44, round diameter Ø96mm, Ø84mm cut out, 8W anti glare led downlights.
Model No.:AU60106-AC
Brand:    Vertex/ OEM available.
MOQ:     500pcs
Production ability: 400,000pcs per month
Payment terms: 30% as deposit and balance should be paid before shipment.
Original:   China
Certificate: CE, RoHS
Package:  White/grey box for inner package, carton for outer package. Need to collect extra fee for customized color box.

Features :

  • Anti-glare design;
  • Dimmable led driver with fast connector, easy for connection;
  • Triac dimming, 0-10V/1-10V , DALI ;

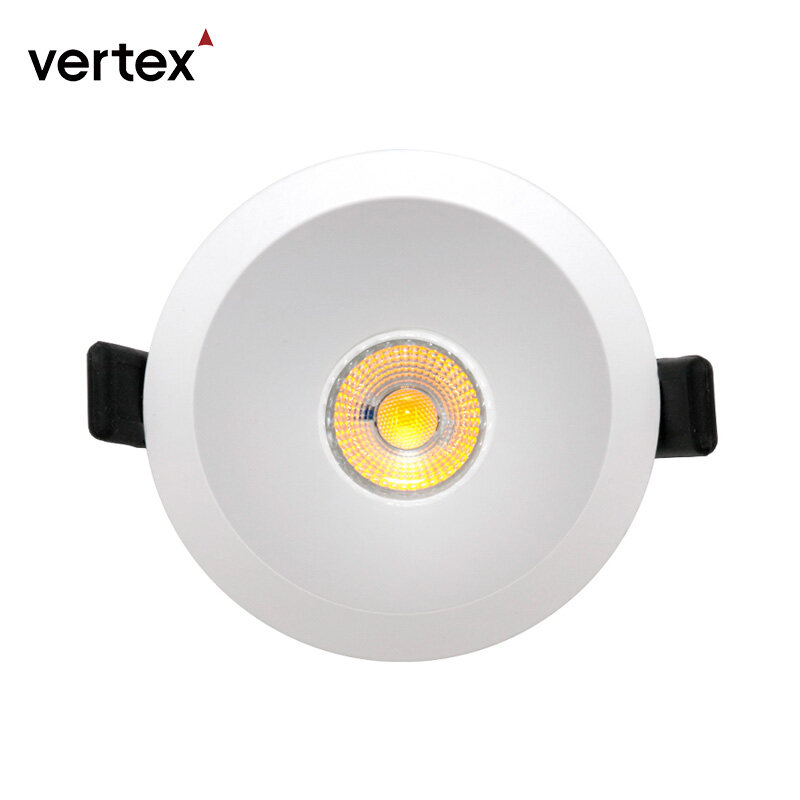

  • PMMA optical led lens, 40° beam angle.

Detailed specification of anti glare led downlights:


Application


Indoor


IP rating


IP44


CCT


2700K/3000K/4000K/
5000K


CRI


Ra>80
(>90 available)


Beam angle


40°


Luminous flux


750lm


Driver



Vertex Driver


Luminous efficiency


75 lm/W


Installation way

Recessed


Material


Aluminum housing


Lighting resource


SMD led


Power


10 W


Bezel color

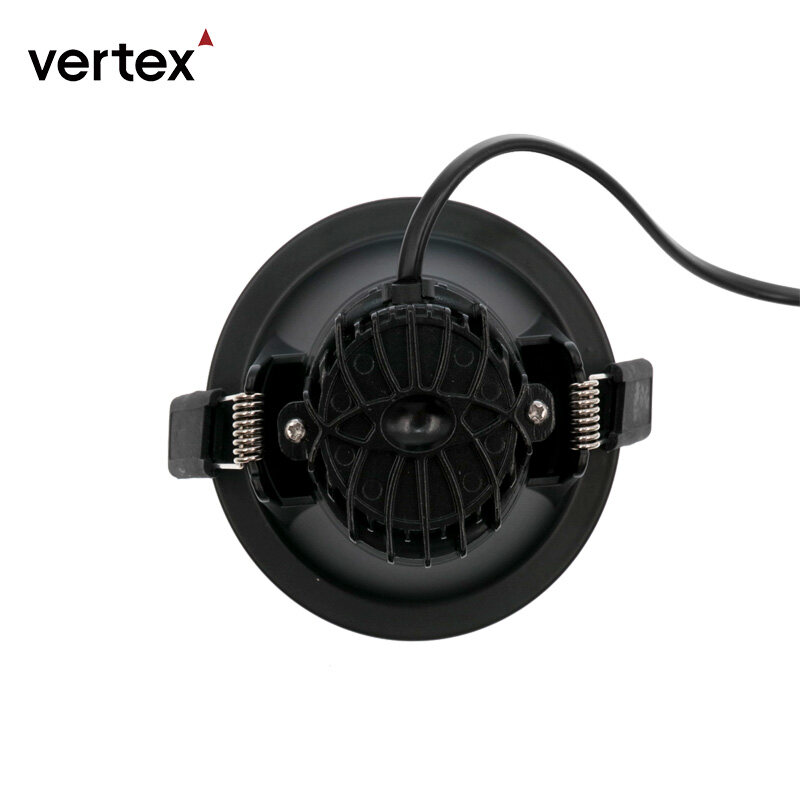

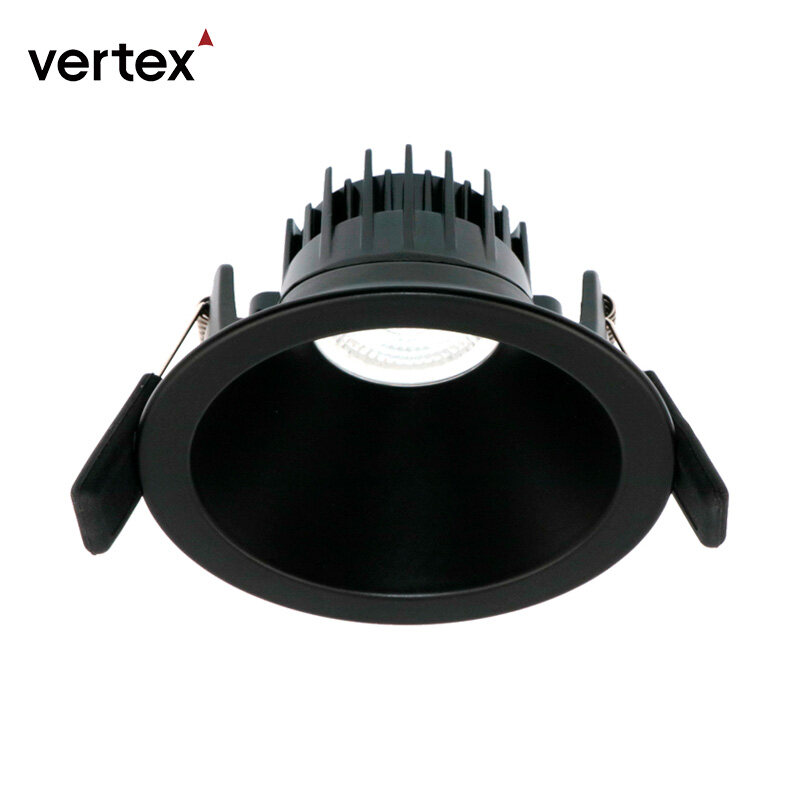

White, Brush Nickel,
Black


Protection Classes


Class III


Brand of led


Cree, Luminus, Bridgelux,
Chinese brand led.


Brand of led converter


Vertex


Voltage/Frequency


AC 220-240V 50/ 60Hz AC120V(+-10%) 50/ 60Hz


Insulation Covered


NO


Dimmable

Dimmable with leading and traiing edge(warm dimming available)


Power Factor


>0.9


Lifespan


Over 40,000 hours


Warranty


5 years warranty


With fast connector


With 3 or 5 wires fast connector in terminal box.


Other


Fixed Version and anti-glare.
